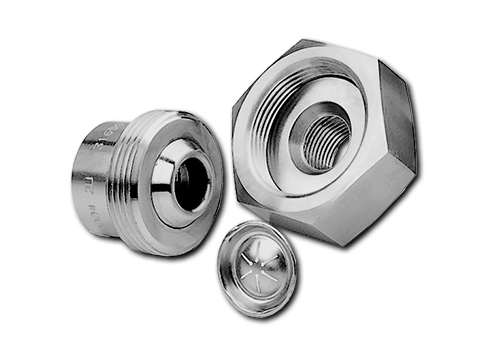

The Union Type Rupture Disk (bursting disk) Holders are reusable units for use on air conditioning systems, high pressure cleaning equipment, gas cylinders, laboratory equipment and autoclaves.
Union HolderHolders
Try Z-SIZE, our user-friendly online tool that calculates the accurate rupture disk size in just minutes
- Features

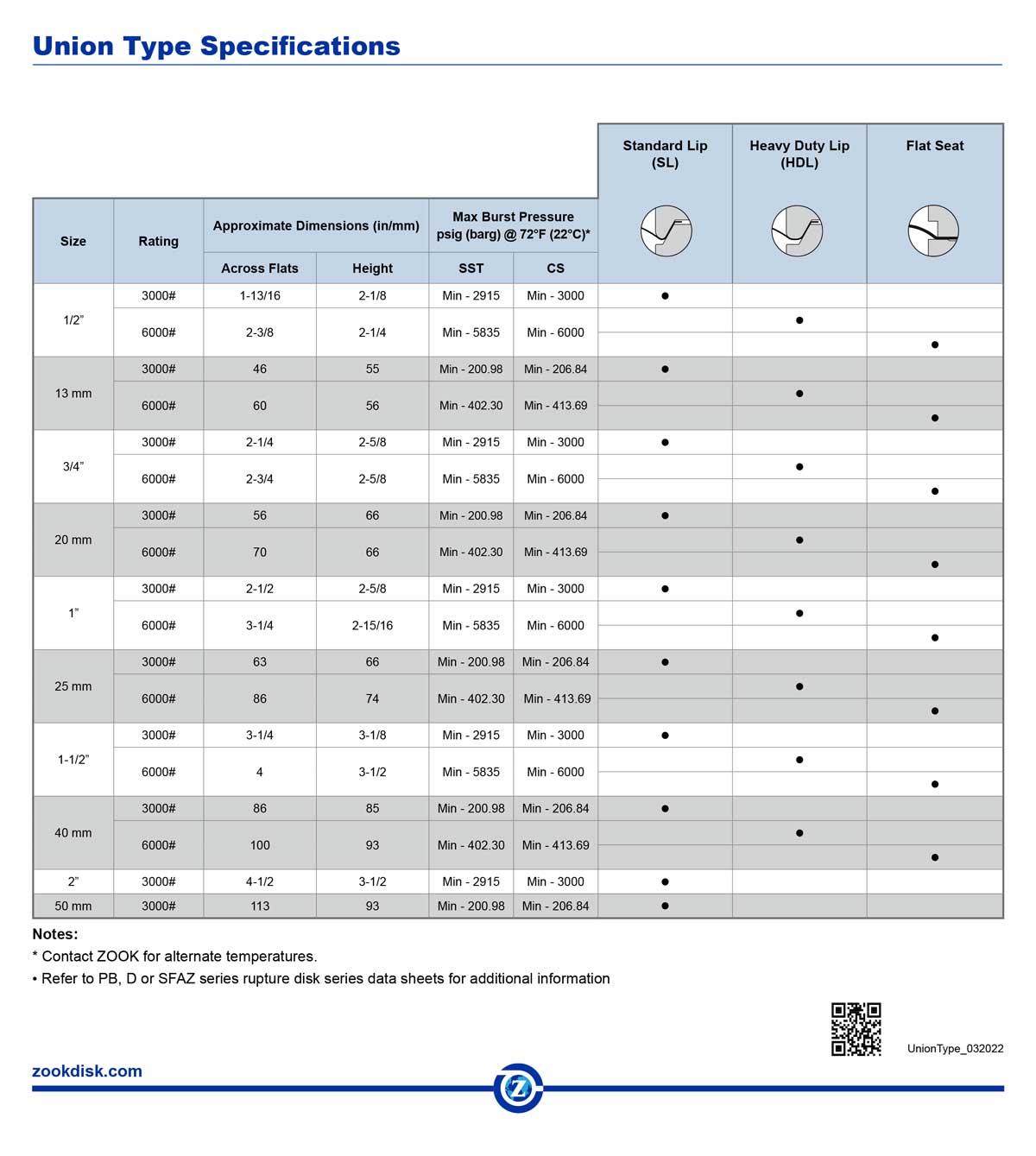

- Specifications
- Installation
- Datasheets & Brochures
- Designed for use with PBUT, DUT or SFAZUT series rupture disks
- Low cost, ideal where installation space is limited
- Standard 30° angle seat design. Flat seat in stainless steel and 6000# only
- Sizes: 1/2” (13mm), 3/4” (20mm), 1” (25mm), 1-1/2” (40mm), 2” (50mm)
- Standard materials of construction: carbon steel and stainless steel. Other materials are available, contact ZOOK
- 2U Threaded (FNPT) inlet and outlet connections standard. Contact ZOOK regarding Butt-Weld or Socket-Weld connections
- ASME UD and CE marking available upon request. Contact ZOOK for more information
Need help to choose the rupture disk size for your specific application?
Try Z-SIZE, our user-friendly online tool that calculates the accurate disk size in just minutes!
EXPLORE Z-SIZE
