Burst Sensors & Indicators

Engineered Solutions for Indicating Over-pressures
or Discharge Conditions for Rupture Disks
Explore more Disks
Range of Products:

ZOOK offers a full line of Burst Sensors and Indicators that offer overpressure indication for both metal and graphite rupture disks. We also provide burst indicators for safety relief valve protection. For other unique applications that may require a Sanitary Tri Clamp fitting, ZOOK can also provide burst indicators that are a simple and effective in indicating when any process media has ruptured a disk.

BA

Re-usable Rupture Disk Burst Sensor. Over-pressure indication for rupture disk or relief valve applications.

Sizes: 1″ – 24″ (25 mm – 600 mm)
Max. Temperature: 700ºF (371ºC)
Max. Voltage: 24 VDC
Max. Current: 20 mA

Explore More
BI

Integral Rupture Disk Burst Indication. Over-pressure indication for rupture disk or explosion vent applications.

Sizes: 1″ – 24″ (25 mm – 600 mm)
Max. Temperature Range: -40ºF to 392ºF (-40ºC to 200ºC)
Max. Current: 50 mA

Explore More
RDI

One Time Use Rupture Disk Indication. Over-pressure indication for rupture disk or relief valve applications

Sizes: 1″ – 24″ (25 mm – 600 mm)
Temperature Range: -40ºF to 392ºF (-40ºC to 200ºC)
Max. Voltage: 24 VDC
Max. Current: 150 mA

Explore More

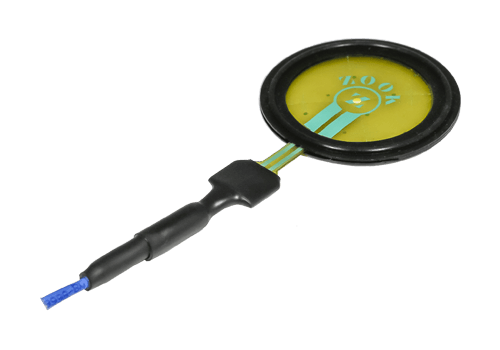

RDI-S

Burst Indication for use in Sanitary Tri Clamp Fittings
SIZES: 25mm (1”) to 100mm (4”) diameter

Explore More
Z-Alert

Versatile monitoring across a wide operating temperature range.

Temperature Range: -76ºF to 248ºF (-60ºC to 120ºC)
Max. Voltage: 150V AC/DC
Max. Current: 830 mA

Explore More
Zensor

Integral Graphite Rupture Disk Sensor. Mounted directly onto a Graphite Rupture Disk.

Explore More
ZAM

Rupture Disk Alarm Monitors. Multiple channel, Instrinsically safe, FM approved, NEMA Type 12 construction.

Explore More
×
