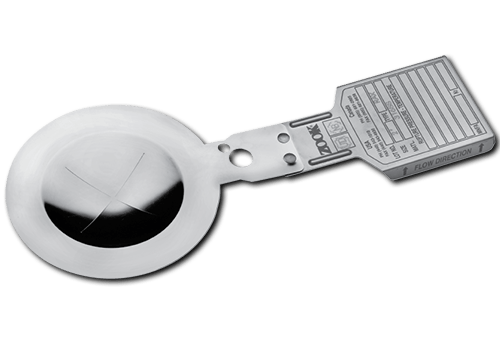

RAXReverse Acting Disks

The RAX reverse acting rupture disks (bursting disk) are designed to cover the majority of high pressure rupture disk (bursting disk) applications and are designed to be used in the RAH Pre-Torque holder.

Get a Quote Explore Z-SIZE

Try Z-SIZE, our user-friendly online tool that calculates the accurate rupture disk size in just minutes

  • Features
  • Specifications
  • Installation
  • Datasheets & Brochures
  • Designed for Non-fragmentation
  • Operating ratios up to 95% of the low end of burst tolerance
  • Disk design offers high cycle life
  • Suitable for gas service only
  • Standard manufacturing design range and total tolerance ensures marked rating on disk tag does not exceed the MAWP of equipment
  • Withstands full vacuum without vacuum support
  • Wide range of standard and exotic materials available
  • Withstands back pressure up to the positive set pressure of the disk
  • Sizes from 1” (25mm) through 12” (300mm)
  • Burst ratings from 27 psig (1.86 barg) to 1480 psig (102.04 barg)
  • Resists product build-up. The smooth convex side of the disk is exposed to the process media
  • Unique alignment pin design ensures proper disk orientation into RAH Series disk holder
  • 3-dimensional stainless steel tag permanently engraved with complete disk specifications
  • ASME UD, CE (PED), and TÜV compliance available

Sizes: 1″ – 12″ (25 mm – 300 mm)
Burst Pressure Range: 27 psig – 1480 psig (1.86 barg – 102.04 barg)
Operating Ratio: Operating ratio up to 95% of the low end of burst tolerance
Vacuum Support Required: No



RAX Installation Guide

RAX DataSheet
RA Series Brochure
RAH DataSheet
