CVF - Explosion Vents
Home
Products
Explosion Vents
CVF

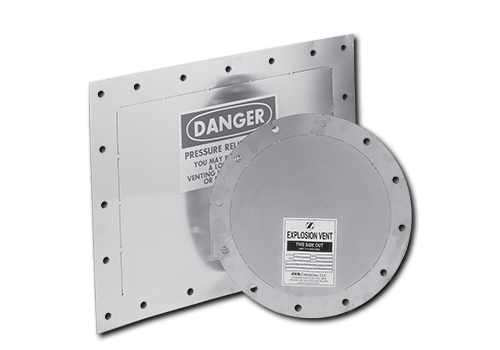

CVF
Flat composite design with single hinge busting pattern.
GET A QUOTE
Features
Specifications
Installation
Literature
Features
Flat composite design with single hinge bursting pattern
Designed to be non-fragmenting
Interchangeable with existing vent installations
Materials: SST/TFE/SST
Square, Rectangular, and Round configurations
Burst ratings from 0.50 psig (0.03 barg) to 8.00 psig (0.55 barg). Contact ZOOK for greater pressures
Operating ratios up to 60% of the low end of burst pressure tolerance
0% Manufacturing range is standard
CV vents have no moving parts, therefore are maintenance free
Manufactured to mount into standard angle frames
Custom sizes and materials available upon request

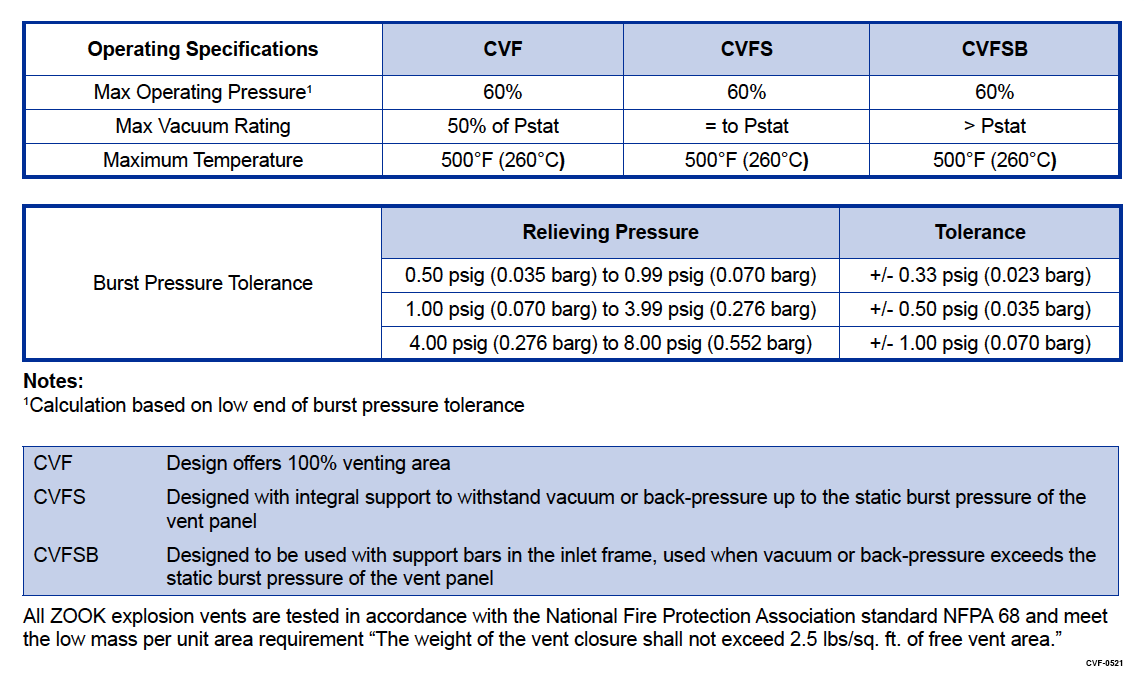

Specifications
×
Installation
CV-F Installation Guide
Literature
CVF Datasheet
Explosion Protection Vent Panels Brochure
×
