BABurst Sensors & Indicators

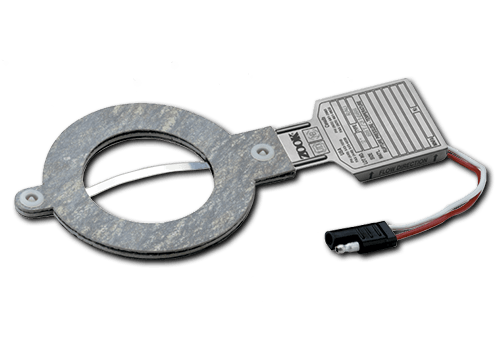

When connected to an electrical alarm, the BA Rupture Disk (bursting disk) Burst Sensor alerts personnel to take immediate action to protect system components from further damage upon an overpressure event.

Try Z-SIZE, our user-friendly online tool that calculates the accurate rupture disk size in just minutes

  • Features
  • Specifications
  • Installation
  • Datasheets & Brochures
  • Re-useable
  • Sizes 1” thru 36” (25 mm – 900 mm)
  • Electrically conductive
  • Installs on vent side of the disk holder or alone
  • Requires minimal flange face-to-face clearance
  • Adapts to virtually all makes/types of rupture disks, including Graphite types
  • Fits easily into existing pipe systems
  • Standard Connection: Red and White wired weatherproof Connector (Connection 1)
  • Leak detection options includes the BA-L with an integral Leak Detector, and the LD (sold separately) for use with a standard BA. Both will indicate if the rupture disk or relief valve is leaking fugitive emissions downstream though the assembly
  • Moisture and abrasion resistant connector features two-pin bullet terminal
  • Compatible with Metal or Graphite Rupture Disks or for stand alone use (relief valve applications)

NOTE: Blue Belden Wire: 1503A, 22 AWG stranded (7×30) TC conductors, PVC insulation, twisted pair, overall Beldfoil shield (100%coverage), 24 AWG stranded TC drain wire, PVC jacket.
