SFAZ - Forward Acting Disks
SFAZ

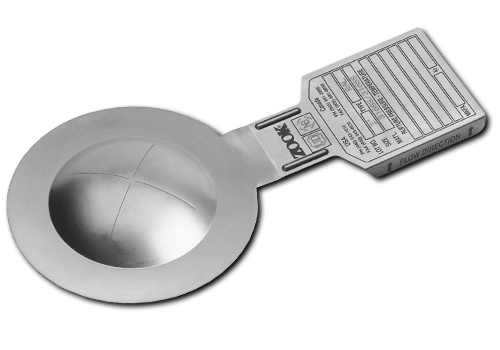

The SFAZ forward acting rupture disks (bursting discs) are solid metal scored disk design. Designed to be used in the UHZ Holder.
Features
- Solid metal cross-scored disk designed for Non-fragmentation
- Operating ratios up to 90% of the low end of the burst tolerance
- Excellent for liquid, gas or 2-phase flow
- Scored after disk material is formed to a high crown height. Permits use of thicker material and allows lower burst ratings which withstand full vacuum
- Burst ratings 15 psig (1 barg) to 3600 psig (248 barg)
- Sizes 1/2” (13mm) through 24” (610mm) diameters
- Temperature ratings to 1000°F (538°C)
- Standard material of construction is Nickel. Optional materials 316SS, Inconel, Monel, Hastelloy C and Aluminum are available
- 3-dimensional stainless steel tag engraved with complete disk specifications
- ASME UD, CE and TÜV compliance available
Sizes: 1/2″ – 24″ (13 mm – 610 mm)
Burst Pressure Range: 15 psig – 3600 psig (1 barg – 248 barg)
Standard Operating Range: 90%
Vacuum Support Required: Contact ZOOK
Installation
×
