RA4 - Reverse Acting Disks
RA4

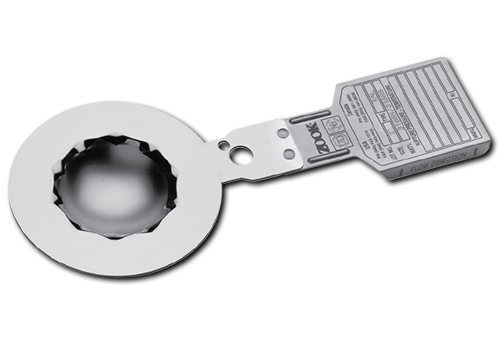

The RA4 reverse acting rupture disks (bursting discs) are designed to cover the majority of low pressure rupture disk (bursting disc) applications and are designed to be used in the RAH Pre-Torque holder.Features
- Designed for Non-fragmentation
- Operating ratios up to 95% of the low end of burst tolerance
- Disk design offers high cycle life
- Suitable for liquid, gas, or two-phase applications
- Standard manufacturing design range and total tolerance ensures marked rating on disk tag does not exceed the MAWP of equipment
- Withstands full vacuum
- Wide range of standard and exotic materials available
- Sizes from 1” (25mm) through 12” (300mm)
- Burst ratings from 2 psig (0.14 barg) to 40 psig (2.76 barg)
- Unique alignment pin design ensures proper disk orientation into RAH Series disk holder
- 3-dimensional stainless steel tag permanently attached and engraved with complete disk specifications
- ASME UD, CE (PED), and TÜV compliance available

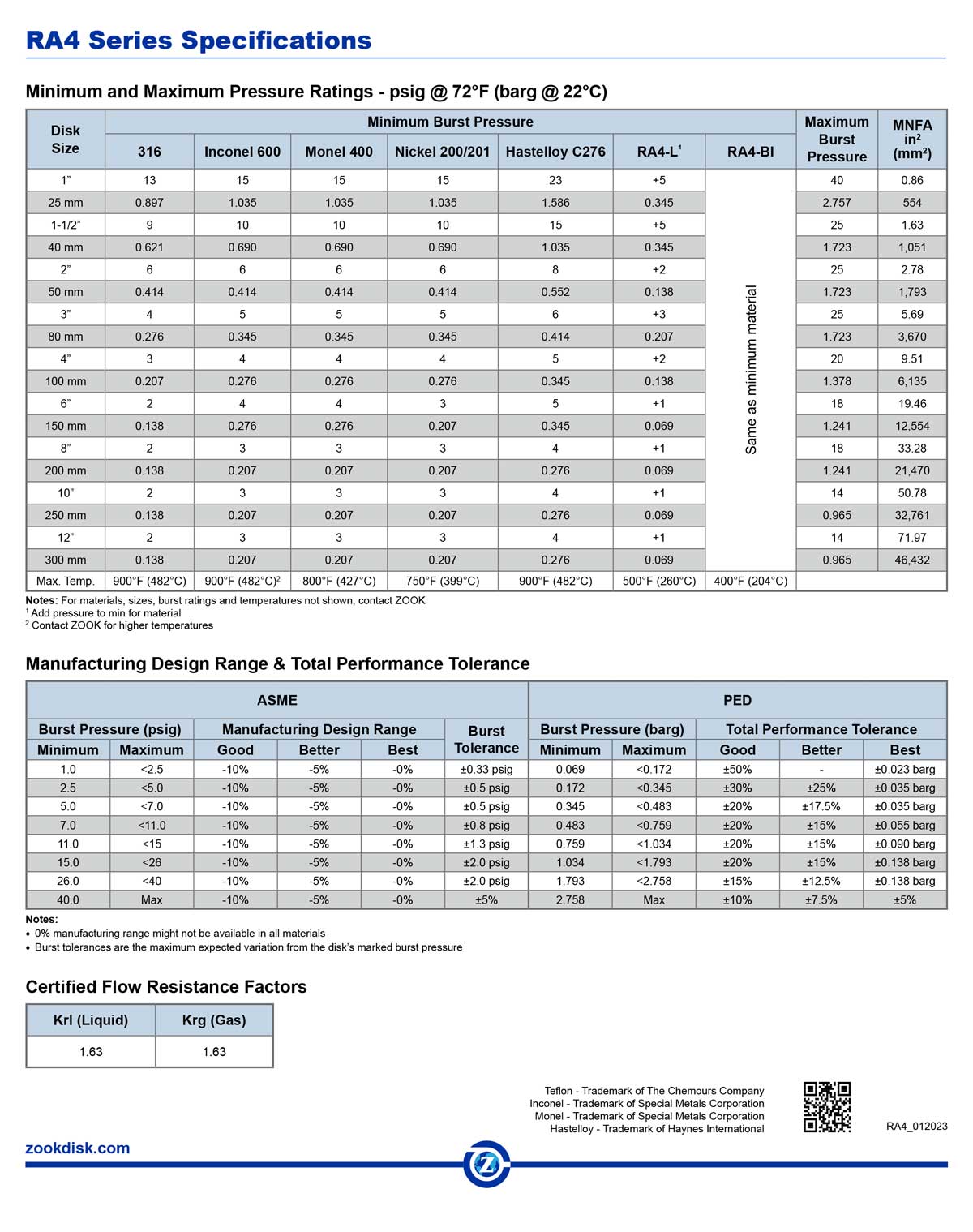

Specifications
Sizes: 1″ – 12″ (25 mm – 300 mm)
Burst Pressure Range: 2 psig – 40 psig (0.14 barg – 2.76 barg)
Operating Ratio: Operating ratio up to 95% of the low end of burst tolerance
Vacuum Support Required: No
