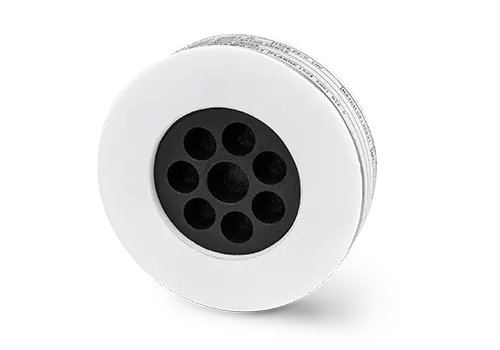

FS-V InvertedGraphite Rupture Disk

ZOOK’s Fluoropolymer Sintered Graphite Rupture Disk (bursting disk) offers enhanced features when compared to resin impregnated graphite disks. The Fluoropolymer coating is sintered at a high temperature onto a graphite blank. The durable coating seals the graphite material enhancing the corrosive capability and allows the disk to operate at sub-zero to elevated temperatures with minimal effect on the burst performance of the rupture disk (bursting disk).

Get a Quote Explore Z-SIZE

Try Z-SIZE, our user-friendly online tool that calculates the accurate rupture disk size in just minutes

PED (CE) compliance available

Features
Specifications
Installation
Datasheets & Brochures

The best choice for highly corrosive, broad temperature range and low burst applications where vacuum is present
Available in nominal sizes 1-1/2” (40 mm) thru 10” (250 mm) diameters
Burst ratings up to 30 psig (2.07 barg) (Use FS Inverted Type for higher burst ratings)
0% manufacturing range is standard
Carbon steel armor standard, 316 optional
Furnished complete with set of PTFE gaskets – attached
Extended temperature range: –290°F to +500°F (–143°C to +260°C)

FS-V Inverted Installation Guide
FS-V Inverted Installation Guide (Spanish)

Graphite Brochure
FS-V Inverted Datasheet
Large Disk Packaging
