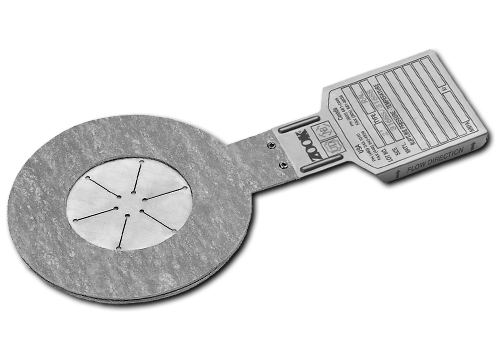

ARDForward Acting Disks

The ARD forward acting rupture disks (bursting disks) provides a simple, inexpensive protection to storage tanks collapsing.

Try Z-SIZE, our user-friendly online tool that calculates the accurate rupture disk size in just minutes

CE (PED) compliance available

  • Features
  • Specifications
  • Installation
  • Datasheets & Brochures
  • State-of-the-art laser slotted metal section
  • Available in uni-directional or bi-directional designs
  • Mounts between standard ANSI, DIN and JIS raised faced flange bore, or equivalent with same bore diameter
  • No disk holder required
  • Standard materials of construction: 316 metal section(s), Teflon seal, Compressed fiber gaskets (Other materials available)
  • Operating pressures to 50% of the disk’s marked burst pressure
  • Flange specific O.D. ensures proper disk alignment
  • Sizes 1” (25 mm) thru 48” (1200 mm)
  • Burst ratings 1 psig (0.07 barg) to 60 psig (4.14 barg)
  • Temperature ratings to 500°F (260°C)
  • 0% manufacturing range

Sizes: 1″ – 48″ (25 mm – 1200 mm)
Burst Pressure Range: 1 psig – 60 psig (0.07 barg – 4 barg)
Standard Operating Range: 50%
Vacuum Support Required: Yes
