Insulated - Graphite Disks
Insulated

Insulated

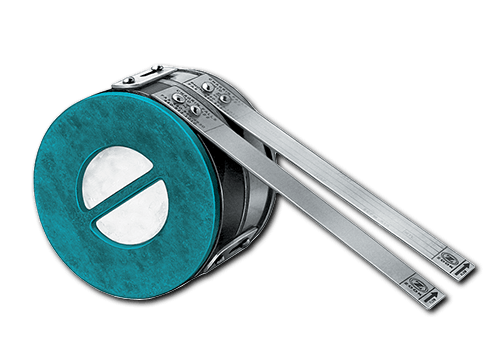

The Insulated Unit Graphite Rupture Disk (bursting disc) is best for temperatures exceeding 430°F (221°C) to 700°F (371°C).

Features

  • For temperatures exceeding 430°F (221°C) to 700°F (371°C)
  • Furnished as an attached unit. Disk’s nameplate rating must be established at the cold face temperature of the insulation
  • NOT available for Two-Way disks or disks with ring or plate vacuum supports
  • Insulated Units are supplied armored with required insulation and gaskets for service above 430°F (221°C) to 700°F (371°C). Standard armor is carbon steel, gaskets are compressed fiber, and insulation is spun alumina/silica. This insulation prohibits use with liquids and some corrosives
  • For temperatures exceeding 700°F (371°C) contact ZOOK
  • Contact ZOOK for flow reduction factor when using Insulated Unit
×
