CVIIF - Explosion Vents
CVIIF

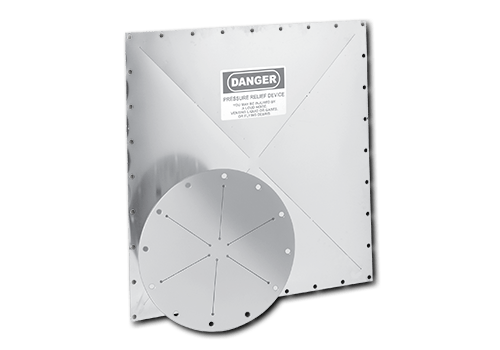

The CVIIF Series has a flat composite design with segmented bursting pattern.
Features
- Flat composite design with single hinge bursting pattern
- Superior fatigue and cycle life when compared to flat single hinge designs
- Designed to be non-fragmenting
- Interchangeable with existing vent installations
- Materials: SST/TFE/SST
- Square, Rectangular, and Round configurations
- Burst ratings from 0.50 psig (0.03 barg) to 8.00 psig (0.55 barg). Contact ZOOK for greater pressures
- Operating ratios up to 60% of the low end of burst pressure tolerance
- 0% Manufacturing range is standard
- CV vents have no moving parts, therefore are maintenance free
- Manufactured to mount into standard angle frames
- Custom sizes and materials available upon request
