Whereas most rupture disks are designed to fit into holders, sanitary rupture disks are designed to fit between sanitary ferrules. They are also specially crafted with no crevices to allow substances to build up on the disk.

ZOOK’s revolutionary ZANITARY® series is an advanced sanitary disk designed for the biotechnology, pharmaceutical and food processing industries. This new patent pending technology incorporates completely new and unique design and manufacturing processes. Utilizing a materials’ natural properties, this exclusive process delivers a superior fatigue resistant and high-performance rupture disk. Without indentations or crevices meeting the demanding geometric 3-A requirements, the new ZANITARY disk design ensures that the process side is inherently smooth providing a high purity service.

  • Passivation finish to reduce the possibility of contamination
  • Standard surface finish 4 – 20 Ra µin (0.1 – 0.5 Ra µm)
  • Withstands full vacuum without the need of a separate vacuum support
  • Suitable for liquid, gas, or two-phase applications
  • Expected cycle life of this new disk technology is 30,000 with full vacuum cycling and approximately 1,000,000+ without full vacuum
  • Suitable for use with NovAseptic flange mountings
  • Cleaned for O2 service available
  • Nitrogen bagging available
  • Suitable for Clean-in-place (CIP) applications
  • Electropolishing available meeting ASME BPE SF4
  • Complies ASME BPE Standard
  • ASME UD, CE (PED), KOSHA and TÜV compliance available
  • Sizes from 1” (25mm) through 4” (100mm)

Looking for a welded custom solution? Our welded cartridge solution combines the ZANITARY® product with ZOOK’s in-house welding technology for a true ‘plug and play’ assembly. Additionally, a cartridge approach creates hermetic seals between disk and ferrule components upstream and downstream of cartridge as well as eliminates the effect of misaligned or improper line loading on rupture disks.

ZANITARY®シリーズ

ZANITARY®シリーズは生物工学や製薬設備や食品加工業界向けに設計された高度なサニタリーディスクです。この新しい設計は、標準タイプ フェルールに取付けます。

呼び径:1″〜4″(25 mm〜100 mm)

もっと見る

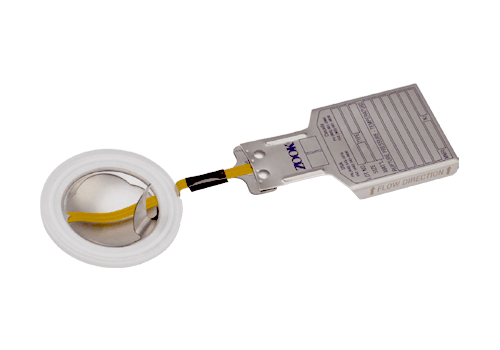

RAUS

サニタリー用高性能反転型金属ラプチャーディスクです。業界レベルの標準部品を取り付けます。

呼び径:1″〜4″(25 mm〜100 mm)
定格破裂圧:18 psig〜300 psig(1.24 barg〜20.69 barg)
ASMEに準拠:液体と気体
PEDに準拠:はい

もっと見る
RLPS

サニタリー用高性能反転型金属製ラプチャーディスクです。業界レベルの標準部品を取り付けます。

呼び径:1″〜4″(25 mm〜100 mm)
定格破裂圧:4 psig〜83 psig(0.27 barg〜5.72 barg)
ASMEに準拠: 液体と気体
PEDに準拠:はい

もっと見る
SD

サニタリー用高性能反転型グラファイト製ラプチャーディスクです。業界レベルの標準部品を使用されています。

呼び径:1″〜4″(25 mm〜100 mm)
定格破裂圧:1.5 psig〜50 psig(0.10 barg〜3.45 barg)
ASMEに準拠:液体と気体
PEDに準拠:はい

もっと見る
×
