TCPTransportation / Railcar

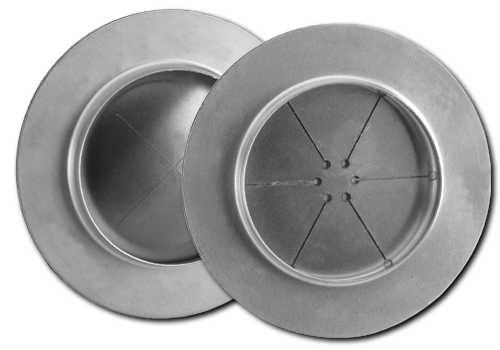

The TCP Series transportation rupture disk provide over-pressure protection for railroad tank cars and tanker trailers.

Get a Quote Explore Z-SIZE

Try Z-SIZE, our user-friendly online tool that calculates the accurate rupture disk size in just minutes

Features
Specifications
Datasheets & Brochures

Provides over-pressure protection for Railroad tank cars and tanker trailers
Fits standard tank car safety vents or mount between ASME B16.5 Class flanges
Conforms to AAR, ICC and CTC standards
Total performance tolerance: +0% –15%

Sizes: 2″ (50 Mm)
Burst Pressure Range: 75 Psig (5.17 Barg), 100 Psig (6.89 Barg), 165 Psig (11.38 Barg)
Standard Operating Range: 55% – 85%
Vacuum Support Required: No

TCP Datasheet
