CVIIPExplosion Vents

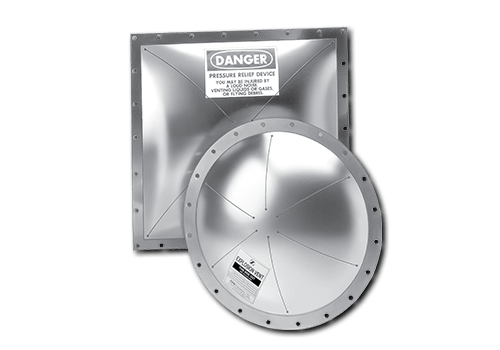

CVIIP Series Explosion Vent Panel features a domed composite design with segmented bursting pattern.

Get a Quote Explore Z-SIZE

Try Z-SIZE, our user-friendly online tool that calculates the accurate rupture disk size in just minutes

Features
Specifications
Installation
Datasheets & Brochures

Domed composite design with segmented bursting pattern
Superior fatigue and cycle life when compared to domed single hinge designs
Designed to be non-fragmenting
Interchangeable with existing vent installations
Materials: SST/TFE/SST
Square, Rectangular, and Round configurations
Burst ratings from 0.50 psig (0.03 barg) to 8.00 psig (0.55 barg). Contact ZOOK for greater pressures
Operating ratios up to 80% of the low end of burst pressure tolerance
0% Manufacturing range is standard
CV vents have no moving parts, therefore are maintenance free
Manufactured to mount into standard angle frames
Custom sizes and materials available upon request

CV-II-P Installation Guide

CVIIP Datasheet
Explosion Protection Vent Panels Brochure
